AN7017SB - FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder

Name: AN7017SB
SKU: AN7017SB-182217

Panasonic Semiconductor

The AN7017SB by Panasonic Semiconductor is a FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder. Below is the official datasheet preview.

📥 Download Datasheet

AN7017SB FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN7017SB** FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN7017SB
Manufacturer	Panasonic Semiconductor
File Size	64.18 KB
Description	FM/TV Front-end ICs for 1.5V Headphone Stereo/ Radio Cassette Recorder
Datasheet	AN7017SB_PanasonicSemiconductor.pdf

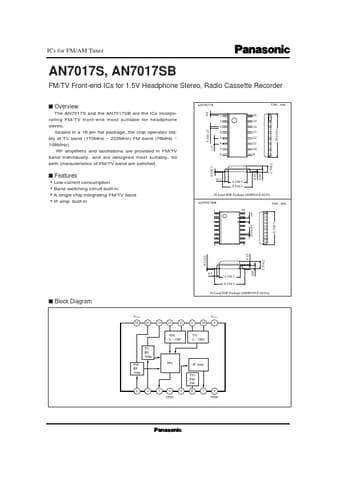

Additional preview pages of the AN7017SB datasheet.

AN7017SB Product details

Description

Pin No.

Features

Low current consumption.
Band switching circuit built-in.
A single chip integrating FM/TV band.
IF amp. built-in AN7017SB 1 0.1±0.1 0.5 s Block Diagram VCC1 16 15 14 13 12 11 10 VCC2 9 FM L.
OSC TV RF Amp. FM RF Amp. Mix. TV L.
OSC IF Amp. TV/ FM SW 1 2 3 4 GND 5 6 7 0.1±0.1 8 GND 16-Lead SOP Package (SOP016-P-0225) ICs for FM/AM Tuner s Absolute Maximum Ratings (Ta=25˚C) Parameter Supply Voltage Supply Current Power Dissipat.
