AN7135

The AN7135 is Dual 7.5W Low Frequency Power Amplifier designed by Panasonic Semiconductor.

Product Overview

Panasonic Semiconductor

Part number	AN7135
Manufacturer	Panasonic Semiconductor
File Size	60.97 KB
Description	Dual 7.5W Low Frequency Power Amplifier
Datasheet	AN7135_PanasonicSemiconductor.pdf

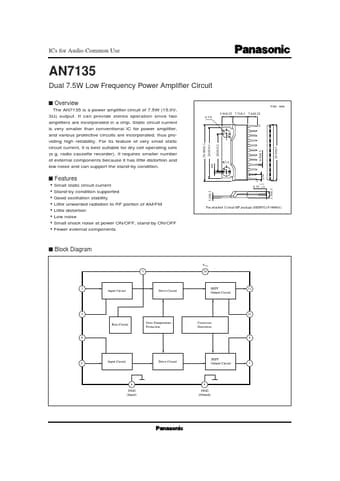

Additional preview pages of the AN7135 datasheet.

Small static circuit current.
Stand-by condition supported.
Good oscillation stability.
Little unwanted radiation to RF portion of AM/FM.
Little distortion.
Low noise.
Small shock noise at power ON/OFF, stand-by ON/OFF.
Fewer external components 1 1.2±0.1 0.35.
0.05 3.5±0.3 12 11 8 7 + 0.1 Fin-attached 12-lead SIP package (HSIP012-P-0000A) s Block Diagram VCC 3 10 2 Input Circuit Drive Circuit SEPP Output.
