AN7170

18W Audio Power Amplifier

AN7170 Features

* High output power : PO =18W

* High surge voltage : VCC (surge) = 60V (max.)

* Wide supply voltage range : VCC (opr) = 8 ~ 35V

* Incorporating protection circuits (overvoltage, 0.95±0.25 overcurrent, temperature, load short)

* Incorporating automatic operat

AN7170 General Description

Pin No. 1 2 3 4 5 6 Output NC GND (Output) Bootstrap Phase Compensation Negative Feedback Pin Name Pin No. 7 8 9 10 11 Input GND (Input) Ripple Filter NC VCC Pin Name ICs for Audio Common Use AN7170 PD

* Ta 40 (1) Tc = Ta (θj

* c = 4˚C/W) (2) With a 100cm2 × 3mm Al heat sink (bla.

AN7170 Datasheet (48.65 KB)

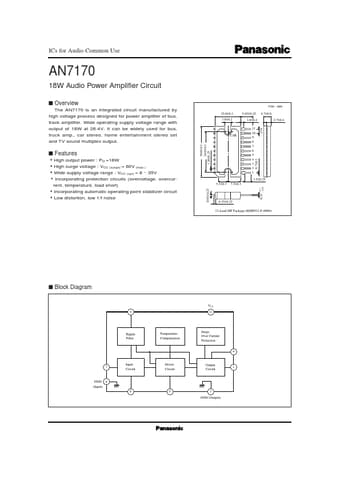

Preview of AN7170 PDF

Datasheet Details

Part number:

AN7170

Manufacturer:

Panasonic Semiconductor

File Size:

48.65 KB

Description:

18w audio power amplifier.
ICs for Audio Common Use AN7170 18W Audio Power Amplifier Circuit s Overview The AN7170 is an integrated circuit manufactured by high voltage process.
