AN7198Z

Dual 20 W BTL Power IC

Panasonic Semiconductor

Download Datasheet (148.26 KB)

AN7198Z Datasheet Preview — Preview of AN7198Z Datasheet

Datasheet Details

Part number:

AN7198Z

Manufacturer:

Panasonic Semiconductor

File Size:

148.26 KB

Description:

Dual 20 w btl power ic.

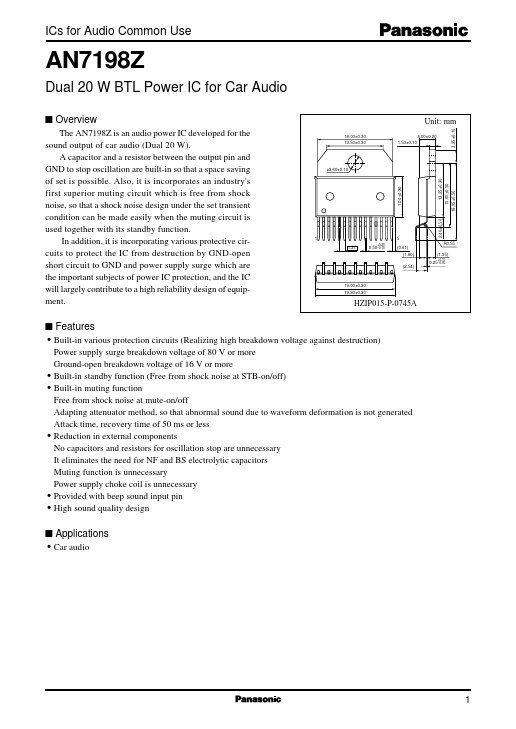

ICs for Audio Common Use AN7198Z Dual 20 W BTL Power IC for Car Audio s Overview The AN7198Z is an .

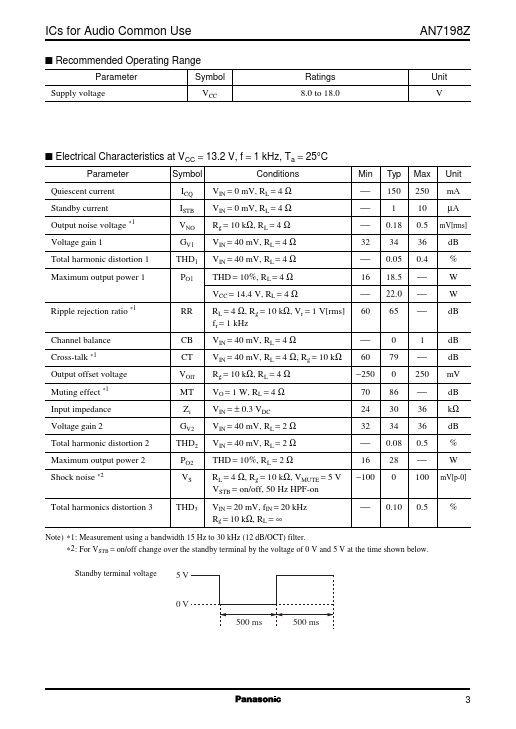

Pin No. 1 2 3 4 5 6 7 8 Description Power supply Ch.1 output (+) Grounding (output ch.1) Ch.1 output.

✔ AN7198Z Features

Built-in various protection circuits (Realizing high breakdown voltage against destruction) Power supply surge breakdown voltage of 80 V or more Ground-open breakdown v

✔ AN7198Z Application

Car audio 18.95±0.50 3.25±0.10 1 AN7198Z s Block Diagram VCC ICs for Audio Common Use Ripple Filter 1
