AN7208SA - TV/FM front-end

AN7208SA Description

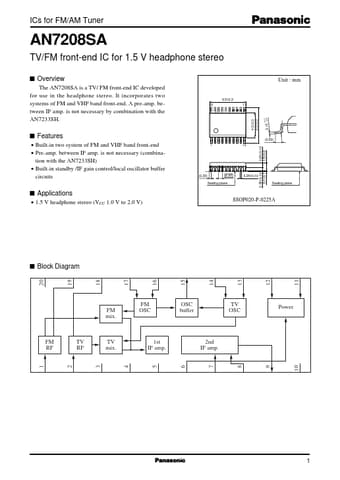

ICs for FM/AM Tuner AN7208SA TV/FM front-end IC for 1.5 V headphone stereo s Overview The AN7208SA is a TV/ FM front-end IC developed for use in the .
Pin No.

AN7208SA Features

* Built-in two system of FM and VHF band front-end
* Pre-amp. between IF amp. is not necessary (combination with the AN7233SH)
* Built-in standby /IF gain control/local oscillator buffer circuits 1 10 4.3±0.3 6.3±0.3 (0.50) 0.65±0.10 1.5±0.2 0.65±0.10 0.1±0.1 (0.33) 0.65
