AN7510 Datasheet - Panasonic Semiconductor

BTL Audio Power IC

AN7510 Features

* Operating power sourcs voltage: 3.0V to 13.5V.

* Built-in standby function.

* Built-in mute or DC volume circuit. s Specifications Parameters Product name AN7510S AN7511S AN7512S AN7513S AN7510 AN7511 AN7512 AN7513

* AN7520 AN7521 AN7522 AN7523

* : Planned O

AN7510 General Description

Pin No. 1 2 3 4 5 6 7 8 Function N.C Standby ch1 Input GND(Input) Mute ch2 Input N.C ch2 Output(-) Pin No. 9 10 11 12 13 14 15 16 Function N.C GND(Output ch2) ch2 Output(+) Vcc ch1 Output(+) GND(Output ch1) ch1 Output(-) N.C s Absolute Maximum Ratings Parameter Storage temperature Operating ambien.

AN7510 Datasheet (278.57 KB)

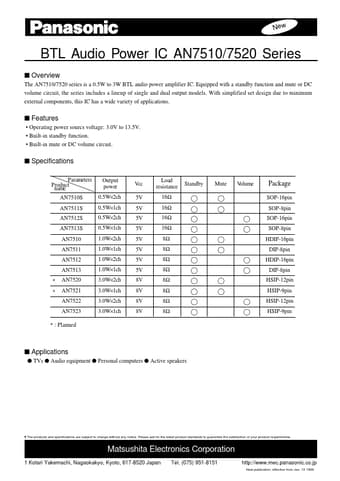

Preview of AN7510 PDF

Datasheet Details

Part number:

AN7510

Manufacturer:

Panasonic Semiconductor

File Size:

278.57 KB

Description:

Btl audio power ic.
New BTL Audio Power IC AN7510/7520 Series s Overview The AN7510/7520 series is a 0.5W to 3W BTL audio power amplifier IC. Equipped with a standby fun.
