AN7510S - BTL Audio Power IC

Datasheet Summary

Description

Pin No.

1 2 3 4 5 6 7 8 Function N.C Standby ch1 Input GND(Input) Mute ch2 Input N.C ch2 Output(-) Pin No.

Features

  • Operating power sourcs voltage: 3.0V to 13.5V.
  • Built-in standby function.
  • Built-in mute or DC volume circuit. s Specifications Parameters Product name AN7510S AN7511S AN7512S AN7513S AN7510 AN7511 AN7512 AN7513.
  • AN7520 AN7521 AN7522 AN7523.
  • : Planned Output power 0.5W×2ch 0.5W×1ch 0.5W×2ch 0.5W×1ch 1.0W×2ch 1.0W×1ch 1.0W×2ch 1.0W×1ch 3.0W×2ch 3.0W×1ch 3.0W×2ch 3.0W×1ch Vcc 5V 5V 5V 5V 5V 5V 5V 5V 8V 8V 8V 8V Load resistance 16Ω 16Ω 16Ω 16Ω 8Ω 8Ω.

📥 Download Datasheet

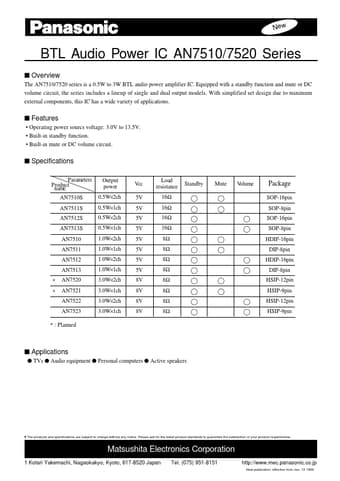

Datasheet preview – AN7510S

Datasheet Details

Part number AN7510S
Manufacturer Panasonic Semiconductor
File Size 278.57 KB
Description BTL Audio Power IC
Datasheet download datasheet AN7510S Datasheet
Additional preview pages of the AN7510S datasheet.

📁 Similar Datasheet

  • AN7512SH - Dual 1-W BTL audio power amplifier (Panasonic)
  • AN7516SH - Audio signal processing IC (Panasonic)
  • AN75 - High Power Factor LED Replacement T8 Fluorescent Tube using the AL9910 High Voltage LED Controller (Diodes)
  • AN7504SB - Pre-amp. and power amp. IC (Panasonic)
  • AN7522N - Silicon Monolithic Bipolar IC (Panasonic)
  • AN7523N - Silicon Monolithic Bipolar IC (Matsudhita)
  • AN753 - Low-Cost Precision Sensor (Maxim Integrated Products)
  • AN7531SA - Headphone amplifier (Panasonic)
  • AN7550NZ - BTL Car Audio Power IC (Panasonic)
  • AN7555Z - BTL output power IC (Panasonic)
Other Datasheets by Panasonic Semiconductor

Full PDF Text Transcription

Click to expand full text
New BTL Audio Power IC AN7510/7520 Series s Overview The AN7510/7520 series is a 0.5W to 3W BTL audio power amplifier IC. Equipped with a standby function and mute or DC volume circuit, the series includes a lineup of single and dual output models. With simplified set design due to minimum external components, this IC has a wide variety of applications. s Features • Operating power sourcs voltage: 3.0V to 13.5V. • Built-in standby function. • Built-in mute or DC volume circuit. s Specifications Parameters Product name AN7510S AN7511S AN7512S AN7513S AN7510 AN7511 AN7512 AN7513 * * AN7520 AN7521 AN7522 AN7523 * : Planned Output power 0.5W×2ch 0.5W×1ch 0.5W×2ch 0.5W×1ch 1.0W×2ch 1.0W×1ch 1.0W×2ch 1.0W×1ch 3.0W×2ch 3.0W×1ch 3.0W×2ch 3.
