AN8032 Active filter controller

Pin No. 1 2 3 4 5 6 7 8 9 Symbol CS MPI EO EI OVP VB GND VOUT VCC Description Comparator input pin Multiplier input pin Error amplifier output pin / multiplier input pin Error amplifier inverted-input pin Overvoltage detection pin Transformer-reset detection pin Grounding pin Output pin Power suppl.

Voltage Regulators AN8032 Active filter control IC s Overview In supplying electric power from commercial power supply to various electrical equipment, there is a possibility that the harmonic distortion generated in the power line may give obstruction to the power facilities or other electrical equipment. The use of active filter is one of the methods to solve the harmonic distortion problems. The AN8032 is a monolithic IC which incorporates the control and protection functions into one packag.

AN8032 Features

* Self-excited peak current mode is adapted. SIP009-P-0000C

* Built-in protection circuit for preventing the overvoltage generated under a small load

* Easy constant setting with enlarged dynamic range of multiplier and error amplifier.

* Overvoltage protection termi

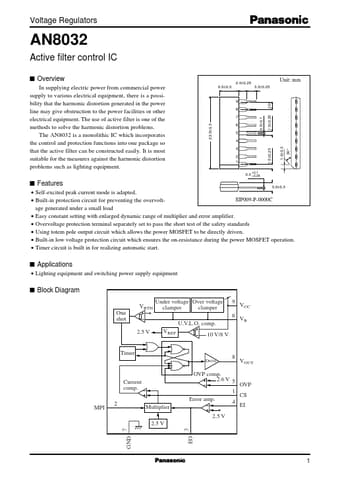

AN8032_PanasonicSemiconductor.pdf
