D2453 Datasheet - Panasonic Semiconductor

D2453, 2SD2453

Power Transistors 2SD2453 Silicon NPN triple diffusion planar type For high current transfer ratio and power amplification * .

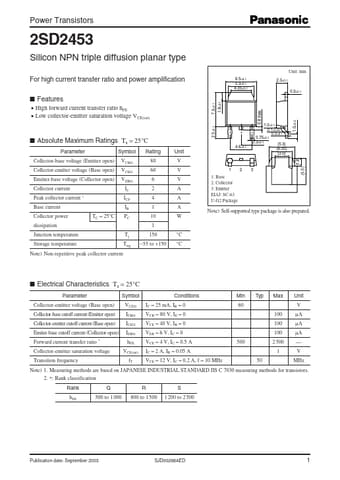

datasheet Preview Page 1 from Datasheet4u.com

D2453-PanasonicSemiconductor.pdf

D2453 Datasheet Preview — Preview of D2453 PDF

Datasheet Details

Part number:

D2453

Manufacturer:

Panasonic Semiconductor

File Size:

69.03 KB

Description:

2SD2453

Features

* High forward current transfer ratio hFE
* Low collector-emitter saturation voltage VCE(sat)
* Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Coll
