ECKD3A102KBP, ECKD3A101KBP, Ceramic Disc Capacitors

Ceramic Disc Capacitors (High Voltage) /KBP High Voltage Ceramic Disc Capacitors Rated 1 to 3 kVDC, Temp.Char.Y5P Hi Volt, Disc, Radial Leaded KPB .

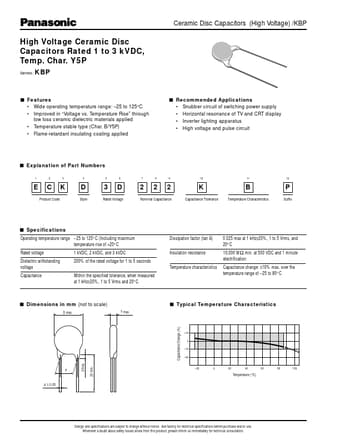

datasheet Preview Page 1 from Datasheet4u.com

ECKD3A101KBP-PanasonicSemiconductor.pdf

ECKD3A102KBP Datasheet Preview — This datasheet PDF includes multiple part numbers: ECKD3A102KBP, ECKD3A101KBP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECKD3A102KBP, ECKD3A101KBP

Manufacturer:

Panasonic Semiconductor

File Size:

145.54 KB

Description:

Ceramic Disc Capacitors

Note:

This datasheet PDF includes multiple part numbers: ECKD3A102KBP, ECKD3A101KBP.
Please refer to the document for exact specifications by model.

Features

* Wide operating temperature range:
* 25 to 125°C
* Improved in “Voltage vs. Temperature Rise” through low loss ceramic dielectric materials applied
* Temperature stable type (Char. B/Y5P)

Applications

* Snubber circuit of switching power supply
* Horizontal resonance of TV and CRT display
* Inverter lighting apparatus
* High voltage and pulse circuit s Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E C Product Code K D Style 3 D 2 2 2 K Capacitan
