ECOS1AA103AA Datasheet - Panasonic Semiconductor

ECOS1AA103AA Large Can Aluminum Electrolytic Capacitors

Large Can Aluminum Electrolytic Capacitors TS-HA Series two terminal snap-in 3000 hour life at 105ºC with high ripple current capability Wide range of case sizes including 20mm, low profile lengths NEW: 40mm diameter sizes through 100WV. Can vent construction Rated Working Voltage: Operating Temperature: Nominal Capacitance: Dissipation Factor: (120 Hz, +20ºC) 10 ~ 250 VDC -40 ~ +105ºC 68 ~ 68000µF (±20% tolerance) Working Voltage [V]: Max. D.F. (%): 10 55 16 45 25 35 35 30 50 25 385 ~ 45.

ECOS1AA103AA_PanasonicSemiconductor.pdf

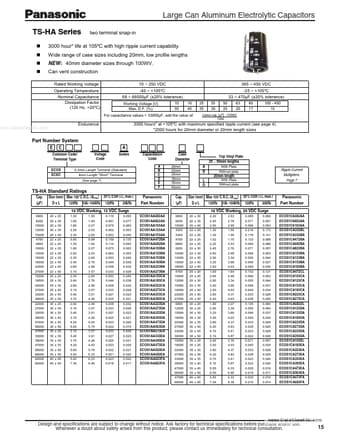

Preview of ECOS1AA103AA PDF
ECOS1AA103AA Datasheet Preview Page 2 ECOS1AA103AA Datasheet Preview Page 3

Datasheet Details

Part number:

ECOS1AA103AA

Manufacturer:

Panasonic Semiconductor

File Size:

183.73 KB

Description:

Large can aluminum electrolytic capacitors.
