LN1251C - LED Surface Mounting Chip Led

Panasonic

Datasheet Details

Part number	LN1251C
Manufacturer	Panasonic
File Size	31.92 KB
Description	LED Surface Mounting Chip Led
Datasheet	LN1251C Datasheet

Full PDF Text Transcription for LN1251C (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for LN1251C. For precise diagrams, and layout, please refer to the original PDF.

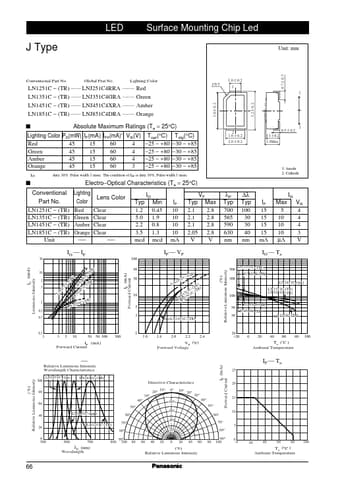

LED Surface Mounting Chip Led Unit: mm J Type 1.0 ± 0.2 C0.5 1 Conventional Part No. Global Prat No. Lighting Color LN1251C − (TR) ······· LNJ251C4RRA ········ LN1351C − ...

View more extracted text

Lighting Color LN1251C − (TR) ······· LNJ251C4RRA ········ LN1351C − (TR) ······· LNJ351C4GRA ········ LN1451C − (TR) ······· LNJ451C4XRA ········ LN1851C − (TR) ······· LNJ851C4DRA ········ s (mA)∗ Red Green Amber Orange Topr(°C) −25 ∼ +80 −25 ∼ +80 −25 ∼ +80 −25 ∼ +80 Tstg(°C) −30 ∼ +85 −30 ∼ +85 −30 ∼ +85 −30 ∼ +85 0.7 ± 0.3 1 3.0 ± 0.2 3.2 ± 0.2 Absolute Maximum Ratings (Ta = 25°C) VR(V) 4 4 4 3 2 1.6 ± 0.2 2.0 ± 0.2 1.1 ± 0.2 1.4Max 0.5 ± 0.2 2 Lighting Color PD(mW) IF(mA) IFP Red 45 15 60 Green 45 15 60 Amber 45 15 60 Orange 45 15 60 IFP duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 ms
