LN503Y Numeric Display

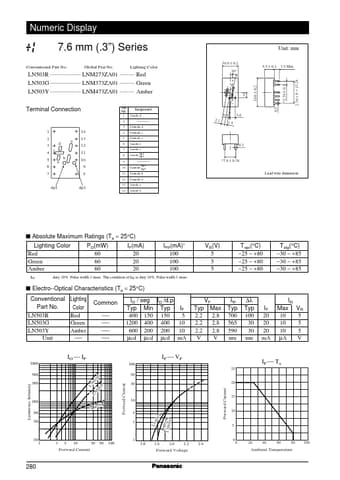

Numeric Display 7.6 mm (.3”) Series Conventional Part No. Global Prat No. Lighting Color 10.0 ± 0.2 10° 5.5 ± 0.2 Unit: mm 3.5 Min. Terminal Connection Pin Assignment No. 1 Anode d 2 3 Cathode d Cathode c Cathode e Anode e Anode c dp1 Anode dp2 dp1 Cathode dp2 Cathode b Cathode a Anode a Anode b 0.5 2.2 1.4 3.0 1 2 3 4 5 6 7 dp1 d c e b a 14 13 12 11 10 9 8 dp2 4 5 6 7 8 9 10 11 12 13 14 0.3 7.6 ± 0.38 Lead wire dimension .

LN503Y Datasheet (22.69 KB)

Preview of LN503Y PDF

Datasheet Details

Part number:

LN503Y

Manufacturer:

Panasonic Semiconductor

File Size:

22.69 KB

Description:

Numeric display.
