LNJ306G5URA Datasheet - Panasonic Semiconductor

LNJ306G5URA Surface Mounting Chip LED

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LNJ306G5URA Surface Mounting Chip LED S-J Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation PD Forward current IF Pulse forward current IFP Reverse voltage VR Operating ambient temperature Topr Storage temperature Tstg Note) : The condition of IFP is duty 10%, Pulse width 1 msec. 60 20 60 4 25 to +85 30 to +100 Unit mW mA mA .

LNJ306G5URA Datasheet (291.44 KB)

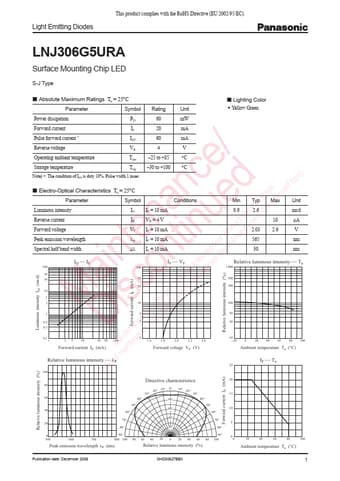

Preview of LNJ306G5URA PDF

Datasheet Details

Part number:

LNJ306G5URA

Manufacturer:

Panasonic Semiconductor

File Size:

291.44 KB

Description:

Surface mounting chip led.
