MAZD2xx, MAZD100 - (MAZDxxx) Silicon planar type

Panasonic Semiconductor

📥 Download Datasheet

MAZD2xx Datasheet Preview — This datasheet PDF includes multiple part numbers: MAZD2xx, MAZD100. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MAZD2xx, MAZD100
Manufacturer	Panasonic Semiconductor
File Size	119.37 KB
Description	(MAZDxxx) Silicon planar type
Datasheet	MAZD100_PanasonicSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MAZD2xx, MAZD100. Please refer to the document for exact specifications by model.

MAZD2xx Product details

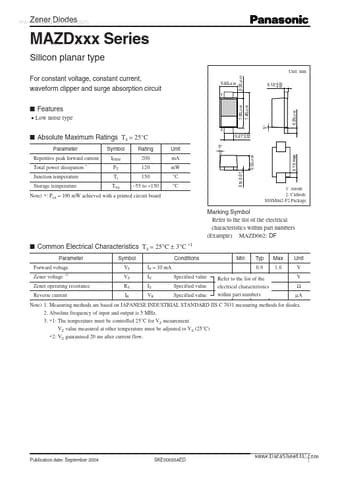

Features

s.
Low noise type 0.60±0.05 1 0.20±0.05 0.12+0.05.
0.02 1.00±0.05 1.40±0.05 2.
Absolute Maximum Ratings Ta = 25°C Parameter Repetitive peak forward current Total power dissipation Junction temperature Storage temperature.
0.27+0.05.
0.02 Symbol IFRM PT Tj Tstg Rating 200 120 150.
55 to +150 Unit mA mW °C °C 5° 0.15 max. 0.52±0.03 0 to 0.01 Note).
: Ptot = 100 mW achieved with a printed circuit board Marking Symbol Refer to the list of.
