16TQC15M - Conductive Polymer Tantalum Solid Capacitors

This page provides the datasheet information for the 16TQC15M, a member of the 16TQC10M Conductive Polymer Tantalum Solid Capacitors family.

Datasheet Summary

Features

  • High voltage (35 V. DC max. ).
  • RoHS compliance, Halogen free Specifications Size code B2 Category temperature range.
  • 55 °C to +105 °C Rated voltage range 16 V. DC to 35 V. DC Category voltage range 16 V. DC to 35 V. DC Rated capacitance range 3.9 μF to 33 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list Surge voltage (V. DC) Rated vo.

📥 Download Datasheet

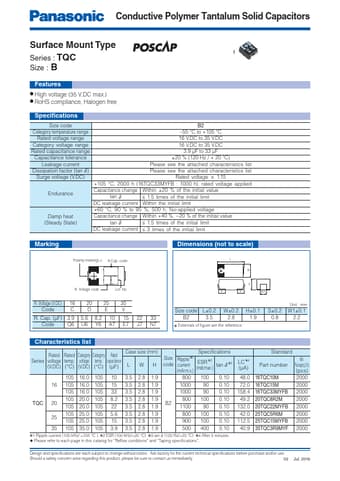

Datasheet preview – 16TQC15M

Datasheet Details

Part number 16TQC15M
Manufacturer Panasonic
File Size 45.29 KB
Description Conductive Polymer Tantalum Solid Capacitors
Datasheet download datasheet 16TQC15M Datasheet
Additional preview pages of the 16TQC15M datasheet.

📁 Similar Datasheet

  • 16TQC10M - High Voltage Products (Sanyo Semiconductor)
  • 16TQC22M - High Voltage Products (Sanyo Semiconductor)
  • 16TQC33M - High Voltage Products (Sanyo Semiconductor)
  • 16TQC47M - High Voltage Products (Sanyo Semiconductor)
  • 16TQC68M - High Voltage Products (Sanyo Semiconductor)
  • 16TQS33MBD - SCHOTTKY RECTIFIER (International Rectifier)
  • 16T - TRIACs (nELL)
  • 16T202DA1E - VFD (Samsung)
  • 16TPB47M - Polymer Capacitor (Sanyo)
  • 16TPB47ML - Polymer Capacitor (Sanyo)
Other Datasheets by Panasonic
  • 16TQC10M - Conductive Polymer Tantalum Solid Capacitors
  • 16TQC33MYFB - Conductive Polymer Tantalum Solid Capacitors
  • 16TDC100MYF - Conductive Polymer Tantalum Solid Capacitors
  • 16TDC150MYF - Conductive Polymer Tantalum Solid Capacitors
  • 16TDC33MYFB - Conductive Polymer Tantalum Solid Capacitors

Full PDF Text Transcription

Click to expand full text
Conductive Polymer Tantalum Solid Capacitors Surface Mount Type Series : TQC Size : B Features ● High voltage (35 V.DC max.) ● RoHS compliance, Halogen free Specifications Size code B2 Category temperature range –55 °C to +105 °C Rated voltage range 16 V.DC to 35 V.DC Category voltage range 16 V.DC to 35 V.DC Rated capacitance range 3.9 μF to 33 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list Surge voltage (V.DC) Rated voltage × 1.15 +105 °C, 2000 h (16TQC33MYFB : 1000 h), rated voltage applied Endurance Capacitance change Within ±20 % of the initial value tan d < 1.
