25SEK470M, 25SEK82M - Conductive Polymer Aluminum Solid Capacitors

Panasonic

Datasheet Details

Part number	25SEK470M, 25SEK82M
Manufacturer	Panasonic ↗
File Size	192.74 KB
Description	Conductive Polymer Aluminum Solid Capacitors

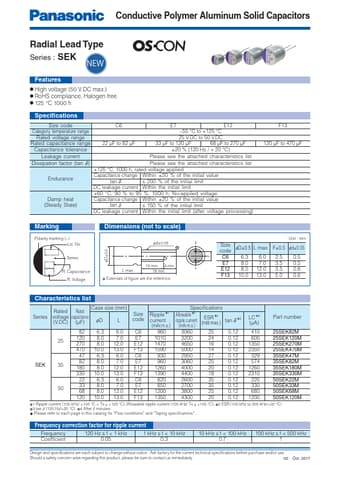

Datasheet	25SEK82M-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 25SEK470M, 25SEK82M. Please refer to the document for exact specifications by model.

High voltage (50 V. DC max. ).
RoHS compliance, Halogen free.
125 °C 1000 h Specifications Size code Category temperature range C6 E7 E12.
55 °C to +125 °C Rated voltage range 25 V. DC to 50 V. DC Rated capacitance range 22 μF to 82 μF 33 μF to 120 μF 68 μF to 270 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list +125 °C, 1000 h,.
