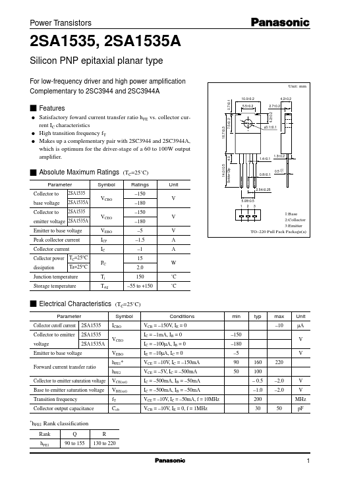

Power Transistors 2SA1535, 2SA1535A Silicon PNP epitaxial planar type For low-frequency driver and high power amplification Complementary to 2SC3944 .

A1535A Features

* q Satisfactory foward current transfer ratio hFE vs. collector current IC characteristics q High transition frequency fT q Makes up a complementary pair with 2SC3944 and 2SC3944A, which is optimum for the driver-stage of a 60 to 100W output amplifier. s Absolute Maximum Ratings (TC=25˚C) Parameter
