ACJ1112 - SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY

Datasheet Summary

Features

1. Smallest in its class, it is extremely compact at approx. 2/3 the size of previous products. Compared to our previous miniature type CT relay, both the 1 Form C and 10-pin and 8-pin twin types take up approx. twothirds the space and volume. This makes them ideal for relay unit miniaturization. 2. Compact and high-capacity 25 A load switching High capacity control is possible while being compact and capable of motor lock load switching at 25 A, 14 V DC. 3. Pin in Paste.
compatible model ad.

Datasheet Details

Part number	ACJ1112
Manufacturer	Panasonic
File Size	201.02 KB
Description	SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY
Datasheet	ACJ1112 Datasheet

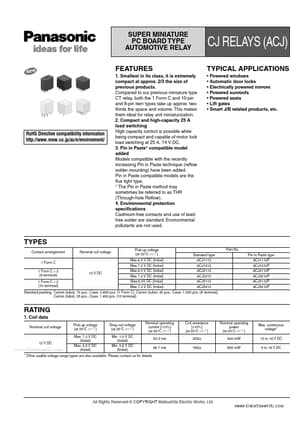

Additional preview pages of the ACJ1112 datasheet.

📁 Similar Datasheet

ACJ110 - 1A TRIAC (JIEJIE)

ACJ-12-1581 - CCFL INVERTER (Applied Concepts)

ACJ-12-1583 - CCFL INVERTER (Applied Concepts)

ACJ-B1-1522 - CCFL INVERTER (Applied Concepts)

ACJ-R1-1578 - CCFL INVERTER (Applied Concepts)

ACJ-V1-1542 - CCFL INVERTER (Applied Concepts)

ACJ-V1-1543 - CCFL INVERTER (Applied Concepts)

ACJ-V3-1520 - CCFL INVERTER (Applied Concepts)

ACJT1 - TRIACs (JIEJIE)

ACJT10 - TRIACs (JIEJIE)

Full PDF Text Transcription

Click to expand full text

CJ (ACJ) SUPER MINIATURE PC BOARD TYPE AUTOMOTIVE RELAY CJ RELAYS (ACJ) TYPICAL APPLICATIONS • Powered windows • Automatic door locks • Electrically powered mirrors • Powered sunroofs • Powered seats • Lift gates • Smart J/B related products, etc. New FEATURES 1. Smallest in its class, it is extremely compact at approx. 2/3 the size of previous products. Compared to our previous miniature type CT relay, both the 1 Form C and 10-pin and 8-pin twin types take up approx. twothirds the space and volume. This makes them ideal for relay unit miniaturization. 2. Compact and high-capacity 25 A load switching High capacity control is possible while being compact and capable of motor lock load switching at 25 A, 14 V DC. 3.
