AQ2A1-C1-T12VDC, AQ2A1-C1-ZT5VDC - RELAYS

Panasonic

Datasheet Details

Part number	AQ2A1-C1-T12VDC, AQ2A1-C1-ZT5VDC
Manufacturer	Panasonic ↗
File Size	215.70 KB
Description	RELAYS
Datasheet	AQ2A1-C1-ZT5VDC-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: AQ2A1-C1-T12VDC, AQ2A1-C1-ZT5VDC. Please refer to the document for exact specifications by model.

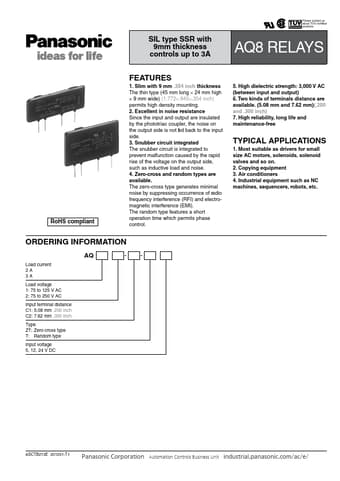

1. Slim with 9 mm .354 inch thickness The thin type (45 mm long × 24 mm high × 9 mm wide) (1.772×.945×.354 inch) permits high density mounting. 2. Excellent in noise resistance Since the input and output are insulated by the phototriac coupler, the noise on the output side is not f ed back to the input side. 3. Snubber circuit integrated The snubber circuit is integrated to prevent malfunction caused by the rapid rise of the voltage on the output side, such as inductive load and noise. 4. Zero-c.
