AQG22212, AQG12105, AQ-G RELAYS

AQ-G VDE Slim type SSR for 1A and 2A control AQ-G RELAYS TYPICAL APPLICATIONS * Household appliances such as air conditioners, refrigerators.

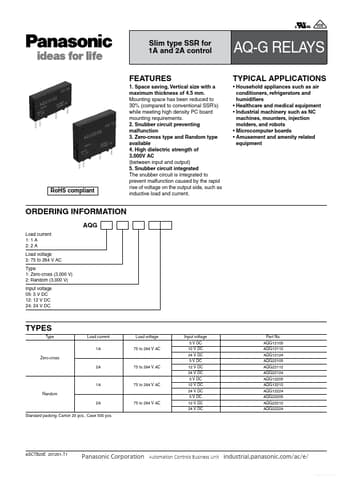

datasheet Preview Page 1 from Datasheet4u.com

AQG12105-Panasonic.pdf

AQG22212 Datasheet Preview — This datasheet PDF includes multiple part numbers: AQG22212, AQG12105. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AQG22212, AQG12105

Manufacturer:

Panasonic

File Size:

116.31 KB

Description:

AQ-G RELAYS

Note:

This datasheet PDF includes multiple part numbers: AQG22212, AQG12105.
Please refer to the document for exact specifications by model.

Features

* 1. Space saving, Vertical size with a maximum thickness of 4.5 mm. Mounting space has been reduced to 30% (compared to conventional SSR’s) while meeting high density PC board mounting requirements. 2. Snubber circuit preventing malfunction 3. Zero-cross type and Random type available 4. High dielect

Applications

* Household appliances such as air conditioners, refrigerators and humidiﬁers
* Healthcare and medical equipment
* Industrial machinery such as NC machines, mounters, injection molders, and robots
* Microcomputer boards
* Amusement and amenity related equipmen
