AQV215S

The AQV215S is PhotoMOS RELAY designed by Panasonic.

Product Overview

Panasonic

Part number	AQV215S, AQV212S
Manufacturer	Panasonic
File Size	156.77 KB
Description	PhotoMOS RELAY
Datasheet	AQV212S-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: AQV215S, AQV212S. Please refer to the document for exact specifications by model.

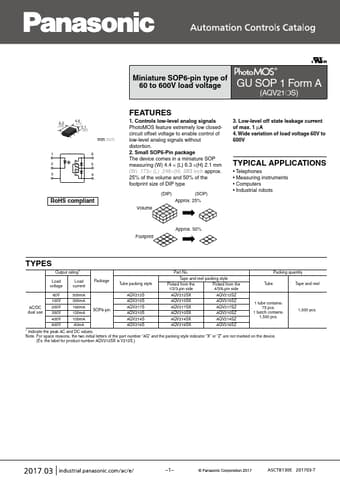

Additional preview pages of the AQV215S datasheet.

1. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion. 2. Small SOP6-Pin package The device comes in a miniature SOP measuring (W) 4.4 × (L) 6.3 ×(H) 2.1 mm (W) .173× (L) .248×(H) .083 inch approx. 25% of the volume and 50% of the footprint size of DIP type Volume (DIP) (SOP) Approx. 25% 3. Low-level off state leakage current of max. 1 μA 4. Wide variation of load voltage 60V to 600V.
