AQV217S, AQV212S, PhotoMOS RELAY

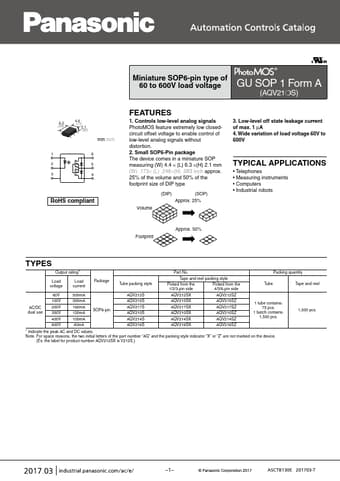

Miniature SOP6-pin type of 60 to 600V load voltage GU SOP 1 Form A (AQV21❍S) 6.3 .248 4.4 .173 2.1 .083 mm inch 16 25 34 RoHS compliant FEATUR.

AQV212S-Panasonic.pdf

AQV217S Datasheet Preview — This datasheet PDF includes multiple part numbers: AQV217S, AQV212S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AQV217S, AQV212S

Manufacturer:

Panasonic

File Size:

156.77 KB

Description:

PhotoMOS RELAY

Note:

This datasheet PDF includes multiple part numbers: AQV217S, AQV212S.
Please refer to the document for exact specifications by model.

Features

* 1. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion. 2. Small SOP6-Pin package The device comes in a miniature SOP measuring (W) 4.4 × (L) 6.3 ×(H) 2.1 mm (W) .173× (L) .248×(H) .083 inch ap

Applications

* Telephones
* Measuring instruments
* Computers
* Industrial robots Footprint Approx. 50% TYPES Output rating
* Part No. Packing quantity Load voltage Load current Package Tube packing style Tape and reel packing style Picked from the 1/2/3-pin side P
