AQY222R2V Datasheet - Panasonic

AQY222R2V, PhotoMOS RF SSOP

C✕R type SSOP package 60 V, 80 V and 100 V load voltage RF SSOP 1 Form A C×R (AQY22❍❍❍V) 2.65 .104 4.45 .175 1.80 .071 mm inch 14 23 RoHS com.

AQY222R2V-Panasonic.pdf

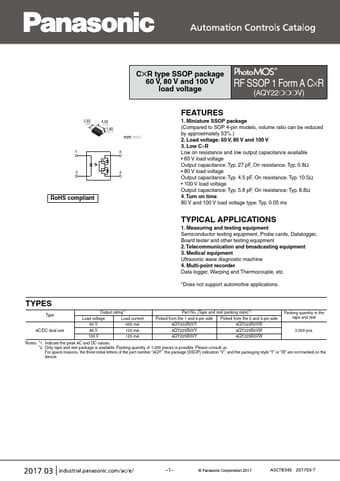

AQY222R2V Datasheet Preview — Preview of AQY222R2V PDF

Datasheet Details

Part number:

AQY222R2V

Manufacturer:

Panasonic

File Size:

167.28 KB

Description:

PhotoMOS RF SSOP

Features

* 1. Miniature SSOP package (Compared to SOP 4-pin models, volume ratio can be reduced by approximately 53%. ) 2. Load voltage: 60 V, 80 V and 100 V 3. Low C×R Low on resistance and low output capacitance available
* 60 V load voltage Output capacitance: Typ. 27 pF, On resistance: Typ. 0.8Ω

Applications

* 1. Measuring and testing equipment Semiconductor testing equipment, Probe cards, Datalogger, Board tester and other testing equipment 2. Telecommunication and broadcasting equipment 3. Medical equipment Ultrasonic wave diagnostic machine 4. Multi-point recorder Data logger, Warping
