ARE10A4H Datasheet - Panasonic

ARE10A4H (ARE Series) 2.6 GHz SMALL MICROWAVE RELAYS

ARE10A4H Features

* Excellent high frequency characteristics (to 2.6GHz) Type Frequency V.S.W.R. (Max.) Insertion loss (dB, Max.) Isolation (dB, Min.) V.S.W.R. (Max.) Insertion loss (dB, Max.) Isolation (dB, Min.) 900MHz 1.3 0.2 60 1.2 0.2 60 2.6GHz 1.7 0.7 30 1.5 0.5 30 Impedance 50Ω Impedance 75Ω RoHS co

ARE10A4H Datasheet (153.02 KB)

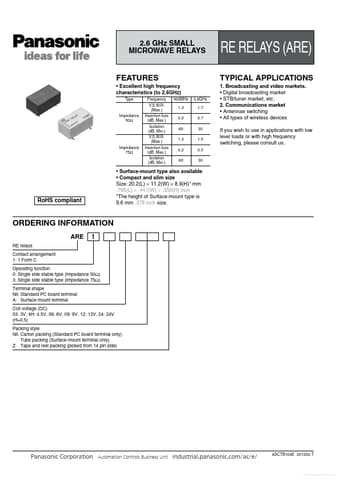

Preview of ARE10A4H PDF

Datasheet Details

Part number:

ARE10A4H

Manufacturer:

Panasonic

File Size:

153.02 KB

Description:

(are series) 2.6 ghz small microwave relays.
