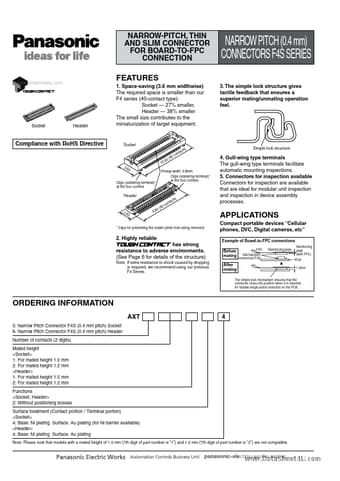

AXT5, 6 Narrow-pitch connectors NARROW-PITCH, THIN AND SLIM CONNECTOR FOR BOARD-TO-FPC CONNECTION NARROW PITCH (0.4 mm) CONNECTORS F4S SERIES 3.The.

AXT624124_Panasonic.pdf

AXT570124 Datasheet Preview — This datasheet PDF includes multiple part numbers: AXT570124, AXT624124. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AXT570124, AXT624124

Manufacturer:

Panasonic

File Size:

384.21 KB

Description:

Header

Note:

This datasheet PDF includes multiple part numbers: AXT570124, AXT624124.
Please refer to the document for exact specifications by model.

Features

* 1. Space-saving (3.6 mm widthwise) The required space is smaller than our F4 series (40-contact type): Socket
* 27% smaller, Header
* 38% smaller The small size contributes to the miniaturization of target equipment. Socket Header Compliance with RoHS Directive Socket (4 o 0c nta

Applications

* Compact portable devices “Cellular phones, DVC, Digital cameras, etc” Example of Board-to-FPC connections Before mating After mating FPC Narrow-pitch connectors F4S Reinforcing plate Reinforcing plate (with FPC) PCB 1.0mm
