Description

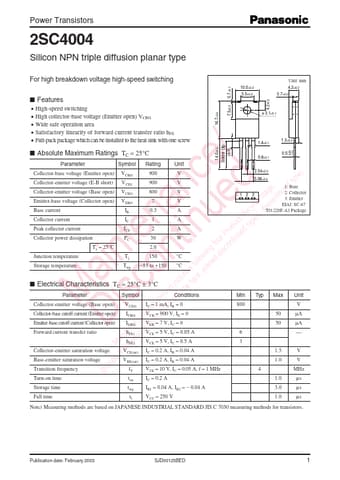

Power Transistors 2SC4004 Silicon NPN triple diffusion planar type 4.2±0.2 16.7±0.3 7.5±0.2 0.7±0.1 For high breakdown voltage high-speed switching.

📥 Download Datasheet

Preview of C4004 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
C4004
Manufacturer
Panasonic
File Size
256.97 KB
Datasheet
C4004-Panasonic.pdf
Description
2SC4004

Features

* 10.0±0.2 5.5±0.2 Unit: mm 4.2±0.2 2.7±0.2
* High-speed switching
* High collector-base voltage (Emitter open) VCBO φ 3.1±0.1
* Wide safe operation area
* Satisfactory linearity of forward current transfer ratio hFE
* Full-pack package which can be instal
