DSP1a-DC3V Datasheet small polarized power relays

Manufacturer: Panasonic

Download the DSP1a-DC3V datasheet PDF. This datasheet also includes the DSP1A-DC12V variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

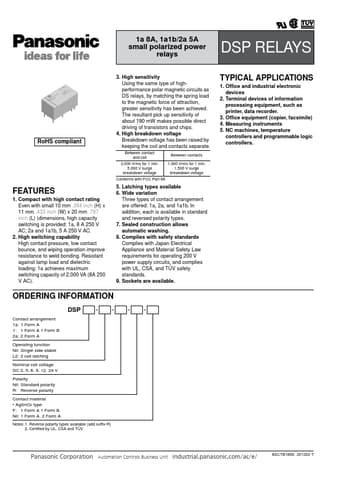

DSP1a-DC3V small polarized power relays by Panasonic - Datasheet Preview — Note: The manufacturer provides a single datasheet file (DSP1A-DC12V_Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	DSP1a-DC3V
Manufacturer	Panasonic
File Size	113.99 KB
Description	small polarized power relays
Download	DSP1a-DC3V Download (PDF)

Overview

DSP DSP RELAYS 1a 8A, 1a1b/2a 5A small polarized power relays RoHS.

Key Features

1. Compact with high contact rating Even with small 10 mm .394 inch (H) x 11 mm .433 inch (W) x 20 mm .787 inch (L) (dimensions, high capacity switching is provided: 1a, 8 A 250 V AC; 2a and 1a1b, 5 A 250 V AC. 2. High switching capability High contact pressure, low contact bounce, and wiping operation improve resistance to weld bonding. Resistant against lamp load and dielectric loading: 1a achieves maximum switching capacity of 2,000 VA (8A 250 V AC). 3. High sensitivity Using the same type o.
