ECA2DHG330, ECA0JHG221, Aluminum Electrolytic Capacitors

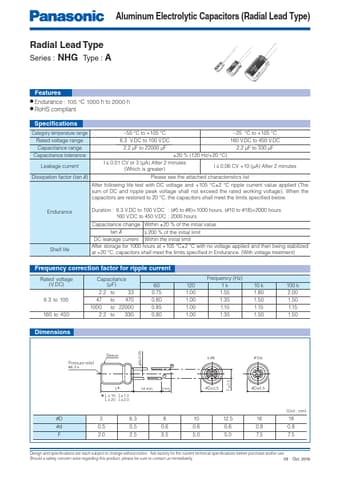

Aluminum Electrolytic Capacitors/ NHG Radial Lead Type Series: NHG Type: A * .

ECA0JHG221_Panasonic.pdf

ECA2DHG330 Datasheet Preview — This datasheet PDF includes multiple part numbers: ECA2DHG330, ECA0JHG221. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECA2DHG330, ECA0JHG221

Manufacturer:

Panasonic

File Size:

84.95 KB

Description:

Aluminum Electrolytic Capacitors

Note:

This datasheet PDF includes multiple part numbers: ECA2DHG330, ECA0JHG221.
Please refer to the document for exact specifications by model.

Features

* Endurance : 105 °C 1000 h to 2000 h
* RoHS directive compliant
* Speciﬁcations Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ
* 55 °C to +105 °C 6.3 V. DC to 100 V. DC 0.1 µF to 22000 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV o
