ECA2VHG330 - Aluminum Electrolytic Capacitors

Product Overview

Panasonic

Part number	ECA2VHG330
Manufacturer	Panasonic
File Size	84.95 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	ECA2VHG330 Datasheet
Note	This datasheet PDF includes multiple part numbers: ECA2VHG330, ECA0JHG221. Please refer to the document for exact specifications by model.

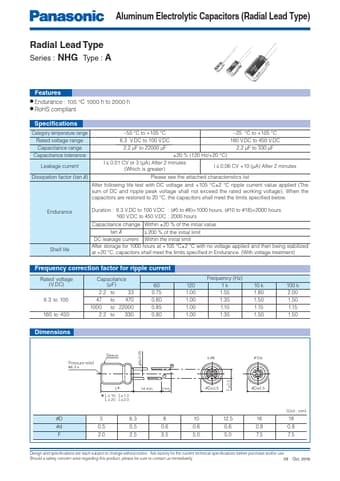

Additional preview pages of the ECA2VHG330 datasheet.

s.
Endurance : 105 °C 1000 h to 2000 h.
RoHS directive compliant.
Speciﬁcations Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ.
55 °C to +105 °C 6.3 V. DC to 100 V. DC 0.1 µF to 22000 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (µA) After 2 minutes (Which is greater) I < 0.06 CV +10 (µA) After 2 minutes.
25 °C to +105 °C 160 V. DC to 450 V. DC 1.0 µF to 330 µF Please see the attached standard products list After.
