Part number:
ECEA1AN472U
Manufacturer:
Panasonic
File Size:
63.34 KB
Description:
Aluminum electrolytic capacitors.

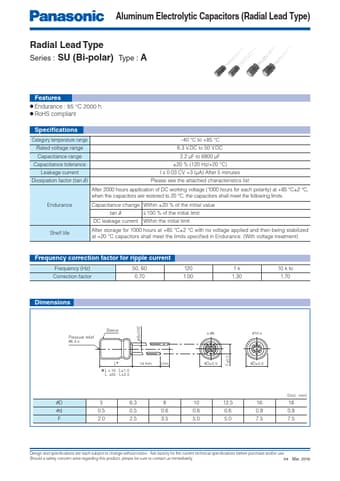

ECEA1AN472U Datasheet (63.34 KB)
Datasheet Details
ECEA1AN472U Features
* Endurance : 85 °C 2000 h
* RoHS compliant Specifications Category temperature range Rated voltage range
* 40 °C to +85 °C 6.3 V.DC to 50 V.DC Capacitance range 2.2 µF to 6800 µF Capacitance tolerance Leakage current ±20 % (120 Hz/+20 °C) I < 0.03 CV +3 (µA) After 5 minutes D
ECEA1AN472U Datasheet (63.34 KB)
Datasheet Details
ECEA1AN472U
Panasonic
63.34 KB
Aluminum electrolytic capacitors.
