ECEG2DU682G - Aluminium Electrolytic Capacitors

Download the ECEG2DU682G datasheet PDF. This datasheet also covers the ECEG1AU683P variant, as both devices belong to the same aluminium electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Endurance : +85°C 2000 h n Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ECEG1AU683P_Panasonic.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for ECEG2DU682G (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for ECEG2DU682G. For precise diagrams, and layout, please refer to the original PDF.

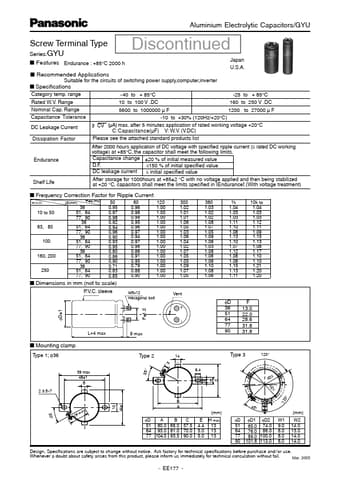

Aluminium Electrolytic Capacitors/GYU Screw Terminal Type Series:GYU n Features Endurance : +85°C 2000 h n Recommended Applications n Specifications Category temp. range ...

View more extracted text
00 h n Recommended Applications n Specifications Category temp. range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current Dissipation Factor Discontinued Japan U.S.A. -40 to + 85°C 10 to 100 V .DC 5600 to 1000000 µ F -25 to + 85°C 160 to 250 V .DC 1200 to 27000 µ F Suitable for the circuits of switching power supply,computer,inverter -10 to +30% (120Hz/+20°C) 3 CV (µA) max. after 5 minutes application of rated working voltage +20°C C:Capacitance(µF) V: W.V. (V.
