ECQE2153xF, ECQE1564xF, Metallized Polyester Film Capacitor

Plastic Film Capacitors Metallized Polyester Film Capacitor Type: ECQE(F) Non-inductive construction using metallized Polyester film with flame reta.

ECQE1564xF_Panasonic.pdf

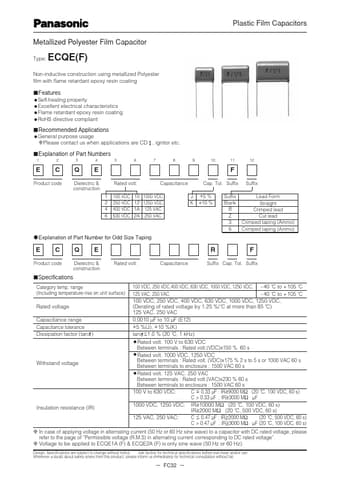

ECQE2153xF Datasheet Preview — This datasheet PDF includes multiple part numbers: ECQE2153xF, ECQE1564xF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECQE2153xF, ECQE1564xF

Manufacturer:

Panasonic

File Size:

374.90 KB

Description:

Metallized Polyester Film Capacitor

Note:

This datasheet PDF includes multiple part numbers: ECQE2153xF, ECQE1564xF.
Please refer to the document for exact specifications by model.

Features

* Self-healing property
* Excellent electrical characteristics
* Flame retardant epoxy resin coating
* RoHS directive compliant

Applications

* General purpose usage 1 2 3 ❈ Please contact us when applications are CD , ignitor etc. 4 5 6 7 8 9 10 11 12
* Explanation of Part Numbers E C Q E Rated volt. 1 2 4 6 100 VDC 250 VDC 400 VDC 630 VDC 10 12 1A 2A Capacitance 1000 VDC 1250 VDC 125 VAC 250 VAC J K F Cap. Tol. Suffi
