EEE0JS220WR - (EEExxxx) Aluminum Electrolytic Capacitors

This page provides the datasheet information for the EEE0JS220WR, a member of the EEE-1CA101WP (EEExxxx) Aluminum Electrolytic Capacitors family.

Datasheet Summary

Features

  • Endurance : 85 ℃ 2000 h.
  • Vibration-proof product (30G guaranteed) is available upon request. (ø8 ≦).
  • AEC-Q200 compliant.
  • RoHS compliant Specifications Category temp. range.
  • 40 ℃ to +85 ℃ Rated voltage range 4.0 V to 100 V Capacitance range 1 μF to 1500 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage current I ≦ 0.01 CV or 3 (μA) (Bi-Polar I ≦ 0.02 CV or 6 (μA)) After 2 minutes (Whichever is greater) Dissipation factor (tan δ) Please see the atta.

📥 Download Datasheet

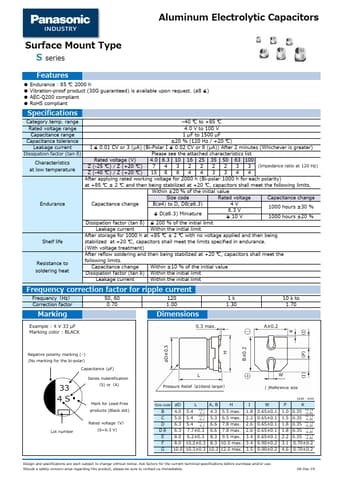

Datasheet preview – EEE0JS220WR

Datasheet Details

Part number EEE0JS220WR
Manufacturer Panasonic
File Size 555.63 KB
Description (EEExxxx) Aluminum Electrolytic Capacitors
Datasheet download datasheet EEE0JS220WR Datasheet
Additional preview pages of the EEE0JS220WR datasheet.

📁 Similar Datasheet

Other Datasheets by Panasonic
  • EEE0JA101SP - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA101WR - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA102P - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA102UP - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA152P - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA220NR - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA220SR - (EEExxxx) Aluminum Electrolytic Capacitors
  • EEE0JA221WP - (EEExxxx) Aluminum Electrolytic Capacitors

Full PDF Text Transcription

Click to expand full text
Aluminum Electrolytic Capacitors Surface Mount Type S series Features ● Endurance : 85 ℃ 2000 h ● Vibration-proof product (30G guaranteed) is available upon request. (ø8 ≦) ● AEC-Q200 compliant ● RoHS compliant Specifications Category temp. range –40 ℃ to +85 ℃ Rated voltage range 4.0 V to 100 V Capacitance range 1 μF to 1500 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage current I ≦ 0.01 CV or 3 (μA) (Bi-Polar I ≦ 0.02 CV or 6 (μA)) After 2 minutes (Whichever is greater) Dissipation factor (tan δ) Please see the attached characteristics list Characteristics at low temperature Rated voltage (V) Z (-25 ℃) / Z (+20 ℃) Z (-40 ℃) / Z (+20 ℃) 4.0 6.
