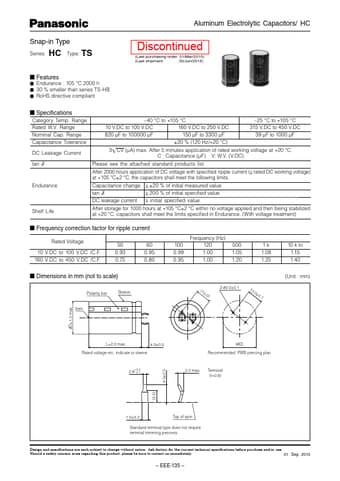

EETHC1J153LJ, EETHC1A123HJ - Aluminum Electrolytic Capacitors

Panasonic

Datasheet Details

Part number	EETHC1J153LJ, EETHC1A123HJ
Manufacturer	Panasonic ↗
File Size	672.54 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EETHC1A123HJ-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EETHC1J153LJ, EETHC1A123HJ. Please refer to the document for exact specifications by model.

s.
Endurance : 105 °C 2000 h.
30 % smaller than series TS-HB.
RoHS directive compliant.
Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d.
40 °C to +105 °C 10 V. DC to 100 V. DC 160 V. DC to 250 V. DC 820 μF to 100000 μF 150 μF to 3300 μF ±20 % (120 Hz/+20 °C).
25 °C to +105 °C 315 V. DC to 450 V. DC 39 μF to 1000 μF 3√ CV (μA) max. After 5 minutes.
