EETLD2G101DJ - Aluminum Electrolytic Capacitors

Product Overview

Panasonic

Part number	EETLD2G101DJ
Manufacturer	Panasonic
File Size	78.96 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EETLD2G101DJ Datasheet
Note	This datasheet PDF includes multiple part numbers: EETLD2G101DJ, EETLD2D221BJ. Please refer to the document for exact specifications by model.

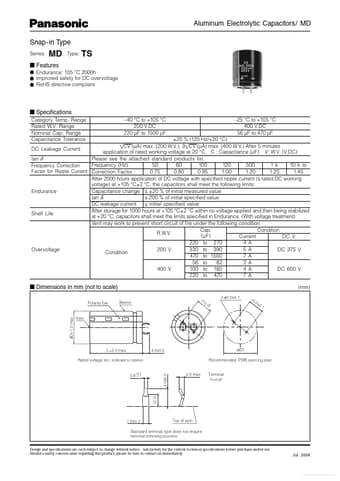

Additional preview pages of the EETLD2G101DJ datasheet.

Speciﬁcations Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance.
40 °C to +105 °C 200 V. DC 220 µF to 1500 µF.
25 °C to +105 °C 400 V. DC 56 µF to 470 µF ±20 % (120 Hz/+20 °C) ǰCV (µA) max. (200 W. V. ), 3ǰCV (µA) max. (400 W. V. ) After 5 minutes DC Leakage Current.
