* Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance
* 40 °C to +105 °C 200 V.DC 220 µF to 1500 µF
* 25 °C to +105 °C 400 V.DC 56 µF to 470 µF ±20 % (120 Hz/+20 °C) ǰCV (µA) max. (200 W.V.), 3ǰCV (µA) max. (400 W.V.) After 5 minutes DC Le

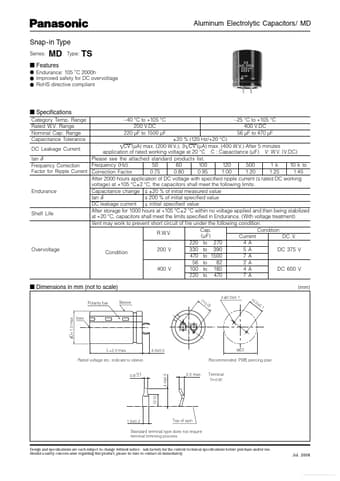

EETLD2G121BJ Datasheet (78.96 KB)
EETLD2G121BJ
Panasonic
78.96 KB
Aluminum electrolytic capacitors.
Aluminum Electrolytic Capacitors/ MD Snap-in Type
Series:
MD
Type:
TS
* Endurance: 105 °C 2000h
* Improved safety for DC overvoltage
*.
