EEUFC0J152S Datasheet Aluminum Electrolytic Capacitors

Manufacturer: Panasonic

Download the EEUFC0J152S datasheet PDF. This datasheet also includes the EEUFC1V102 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

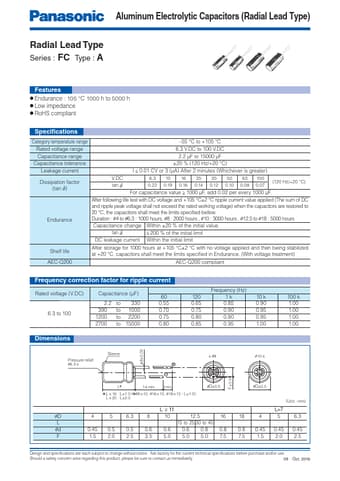

EEUFC0J152S aluminum electrolytic capacitors by Panasonic - Datasheet Preview — Note: The manufacturer provides a single datasheet file (EEUFC1V102-Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	EEUFC0J152S
Manufacturer	Panasonic
File Size	146.00 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EEUFC0J152S Datasheet

Overview

Aluminum Electrolytic Capacitors (Radial Lead Type) Radial Lead Type Series : FC Type :.

Key Features

Endurance : 105 °C 1000 h to 5000 h.
Low impedance.
RoHS compliant Specifications Category temperature range.
55 °C to +105 °C Rated voltage range 6.3 V. DC to 100 V. DC Capacitance range 2.2 µF to 15000 µF Capacitance tolerance ±20 % (120 Hz/+20 °C) Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater) Dissipation factor (tan d) Endurance V. DC tan d 6.3 10 16 25 35 50 63 100 (120 Hz/+20 °C) 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07 For c.
