EEUFR0J151 - Aluminum Electrolytic Capacitors

Name: EEUFR0J151
SKU: EEUFR0J151-828707

Panasonic

The EEUFR0J151 by Panasonic is a Aluminum Electrolytic Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	EEUFR0J151
Manufacturer	Panasonic
File Size	118.69 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EEUFR0J151-Panasonic.pdf

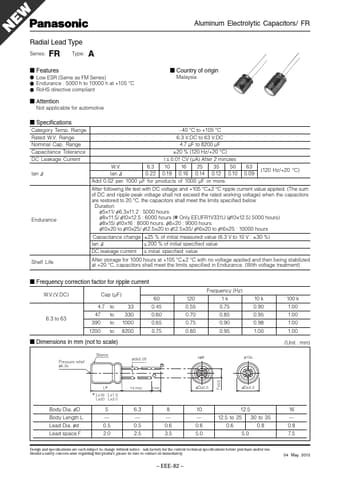

Additional preview pages of the EEUFR0J151 datasheet.

s.
Low ESR (Same as FM Series).
Endurance : 5000 h to 10000 h at +105 °C.
RoHS directive compliant.
Attention Not applicable for automotive.
Speciﬁcations Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ.
40 °C to +105 °C 6.3 V. DC to 63 V. DC 4.7 µF to 8200 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV (µA) After 2 minutes W. V. 6.3 10 16 25 35 50 tan δ 0.22 0.19 0.16 0.14 0.12 0.10 Add 0.02 per 1000 µF for products.
