ELJFA100xF, ELJFAR82F2 Fixed Inductors

ELJFA100xF Description

Fixed Inductors (Chip Inductors) 3.General use FC, FA, FB Japan China * .

ELJFA100xF Features

* General use wire wound and resin molded chip inductor. Corespond to Re-flowsoldering and flow soldering. Wide line-up from 2520 size to 4532 size. Good for mounting.

ELJFA100xF Applications

* AV equipment, Wireless communication equipment and various general electronic equipment.
* Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E L J F A 1 R 2 K F 2 Packaging Design No. Product code Chip Inductors FC FA FB Shape 2520 3225 4532 Inductance R22 3R3 470 561 102 220 nH 3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ELJFA100xF, ELJFAR82F2. Please refer to the document for exact specifications by model.

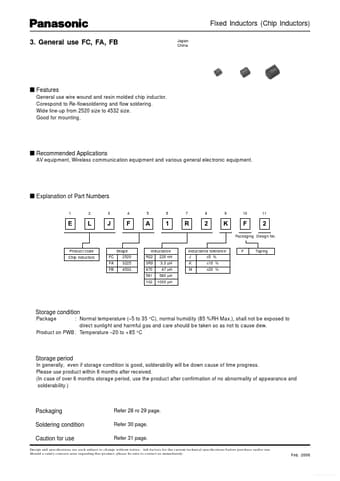

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ELJFA100xF, ELJFAR82F2
Manufacturer
Panasonic
File Size
95.05 KB
Datasheet
ELJFAR82F2_Panasonic.pdf
Description
Fixed Inductors
Note
This datasheet PDF includes multiple part numbers: ELJFA100xF, ELJFAR82F2.
Please refer to the document for exact specifications by model.
