ELJFC4R7xF, ELJFAR82F2 Datasheet - Panasonic

ELJFC4R7xF, ELJFAR82F2, Fixed Inductors

Fixed Inductors (Chip Inductors) 3.General use FC, FA, FB Japan China * .

ELJFAR82F2_Panasonic.pdf

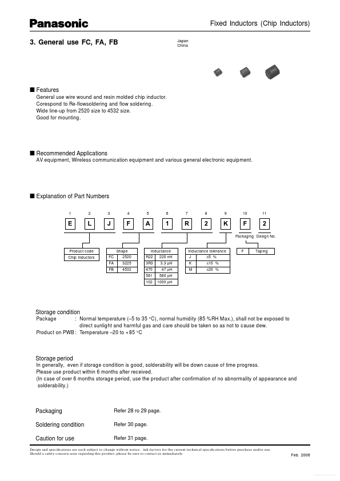

ELJFC4R7xF Datasheet Preview — This datasheet PDF includes multiple part numbers: ELJFC4R7xF, ELJFAR82F2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ELJFC4R7xF, ELJFAR82F2

Manufacturer:

Panasonic

File Size:

95.05 KB

Description:

Fixed Inductors

Note:

This datasheet PDF includes multiple part numbers: ELJFC4R7xF, ELJFAR82F2.
Please refer to the document for exact specifications by model.

Features

* General use wire wound and resin molded chip inductor. Corespond to Re-ﬂowsoldering and ﬂow soldering. Wide line-up from 2520 size to 4532 size. Good for mounting.

Applications

* AV equipment, Wireless communication equipment and various general electronic equipment.
* Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E L J F A 1 R 2 K F 2 Packaging Design No. Product code Chip Inductors FC FA FB Shape 2520 3225 4532 Inductance R22 3R3 470 561 102 220 nH 3
