ELLVGG3R3N

Power Inductors / Wire Wound type

Panasonic

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Panasonic Electronic Components	ELLVGG3R3N	ELL-VGG3R3N	FIXED IND 3.3UH 1.1A 130MOHM SMD	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (120.77 KB)

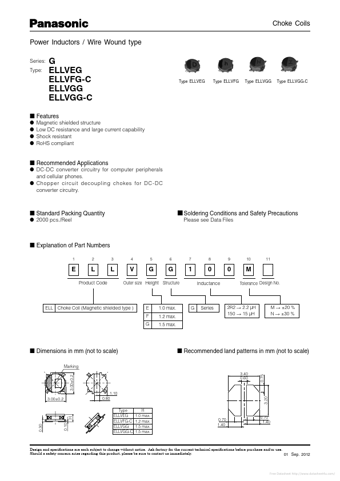

ELLVGG3R3N Datasheet Preview Page 1 — Preview of ELLVGG3R3N Datasheet

Datasheet Details

Part number:

ELLVGG3R3N

Manufacturer:

Panasonic

File Size:

120.77 KB

Download:

📄 Download ELLVGG3R3N Datasheet PDF

Description:

Power inductors / wire wound type.
Choke Coils Power Inductors / Wire Wound type Series: Type: G ELLVEG ELLVFG-C ELLVGG ELLVGG-C Type.
ELLVEG Type ELLVFG Type ELLVGG Type ELLVGG-C * Features * * * * Magnetic shielded structure Low.

✔ ELLVGG3R3N Features

Magnetic shielded structure Low DC resistance and large current capability Shock resistant RoHS compliant
Recommended Applications
DC-DC converter circuitry

✔ ELLVGG3R3N Application

DC-DC converter circuitry for computer peripherals and cellular phones.
Chopper circuit decoupling chok
