EVE-WEH00115B, EVE-JBBF2020B, (EVE-xxxx) Mechanical Rotary Encoders

www.DataSheet4U.com Mechanical Rotary Encoders Fig.1 5 0.7 C 5 14 12.4 Signal A 10kΩ 10kΩ A B DC 5V 10kΩ 10kΩ Signal B 0.01μ Encoder COM Fig.2 D.C.
12(mm) Dim. /24 12/12. /24 20/20 Digi-Key Part No.

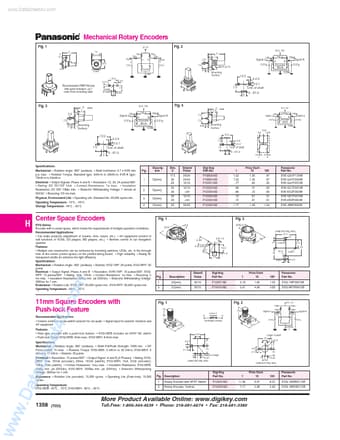

datasheet Preview Page 1 from Datasheet4u.com

EVE-JBBF2020B_Panasonic.pdf

EVE-WEH00115B Datasheet Preview — This datasheet PDF includes multiple part numbers: EVE-WEH00115B, EVE-JBBF2020B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EVE-WEH00115B, EVE-JBBF2020B

Manufacturer:

Panasonic

File Size:

187.03 KB

Description:

(EVE-xxxx) Mechanical Rotary Encoders

Note:

This datasheet PDF includes multiple part numbers: EVE-WEH00115B, EVE-JBBF2020B.
Please refer to the document for exact specifications by model.

Features

* Multiple unit construction can be achieved by mounting switches, LEDs, etc. in the through hole at the center (center space) on the printed wiring board.
* High reliability
* Ready for transparent shafts (to enhance the light diffusion) Specifications: Mechanical:

Applications

* Car audio products (adjustment of volume, tone, tuners, etc. )
* AV equipment (control of edit functions of VCRs, CD players, MD players, etc. )
