EXC24CE121U, EXC24CE Datasheet - Panasonic

EXC24CE121U, EXC24CE, Common mode Noise Filters

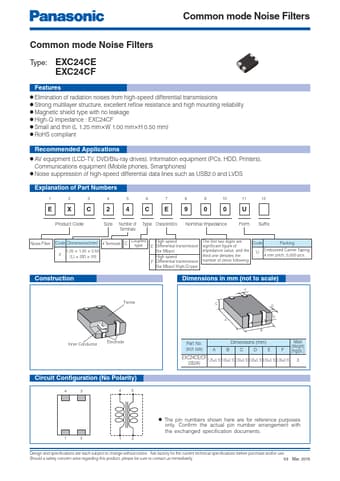

Common mode Noise Filters Common mode Noise Filters Type: EXC24CE EXC24CF .

EXC24CE-Panasonic.pdf

EXC24CE121U Datasheet Preview — This datasheet PDF includes multiple part numbers: EXC24CE121U, EXC24CE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EXC24CE121U, EXC24CE

Manufacturer:

Panasonic

File Size:

61.38 KB

Description:

Common mode Noise Filters

Note:

This datasheet PDF includes multiple part numbers: EXC24CE121U, EXC24CE.
Please refer to the document for exact specifications by model.

Features

* Elimination of radiation noises from high-speed differential transmissions
* Strong multilayer structure, excellent reﬂow resistance and high mounting reliability
* Magnetic shield type with no leakage
* High-Q impedance : EXC24CF
* Small and thin (L 1.25 mm×W 1.00 mm×H 0.50 mm

Applications

* AV equipment (LCD-TV, DVD/Blu-ray drives), Information equipment (PCs, HDD, Printers), Communications equipment (Mobile phones, Smartphones)
* Noise suppression of high-speed differential data lines such as USB2.0 and LVDS Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 EXC2 4CE9 0
