FK3303010L - Silicon N-channel MOS FET

Panasonic

📥 Download Datasheet

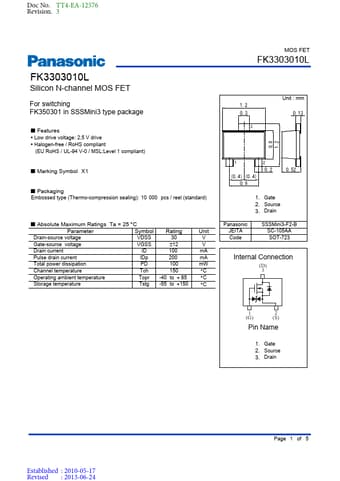

FK3303010L Datasheet Preview — Preview of FK3303010L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FK3303010L
Manufacturer	Panasonic ↗
File Size	287.10 KB
Description	Silicon N-channel MOS FET
Datasheet	FK3303010L-Panasonic.pdf

FK3303010L Product details

Features

s.
Low drive voltage: 2.5 V drive.
Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant).
Marking Symbol: X1.
Packaging FK3303010L Embossed type (Thermo-compression sealing): 10 000 pcs / reel (standard).
Absolute Maximum Ratings Ta = 25 °C Parameter Drain-source Voltage Gate-source Voltage Drain Current Drain Current(Pulsed) Total Power Dissipation Channel Temperature Storage Temperature Symbol VDS VGS ID IDp PD Tch Tstg Rating 30 ±12 100 200 1.
