HHR380A
HHR380A is NICKEL METAL HYDRIDE BATTERIES manufactured by Panasonic.

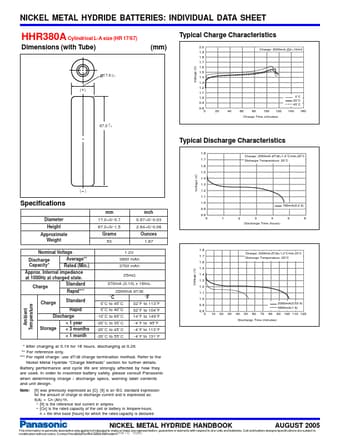

NICKEL METAL HYDRIDE BATTERIES: INDIVIDUAL DATA SHEET
HHR380A Cylindrical L-A size (HR 17/67)
Dimensions (with Tube) (mm)
Typical Charge Characteristics
2.0 1.9 1.8 1.7
Voltage (V)
Charge: 2000m A- V=10m V
0 17.0 +
- 0.7
1.6 1.5 1.4 1.3 1.2 1.1 1.0 0.9 0.8 0 20 40 60 80 100 120
0˚C 20˚C 45˚C
(+)
Charge Time (minutes)
0 67.0 +
- 1.5
Typical Discharge Characteristics
1.8 1.7 1.6 1.5
Voltage (V)
Charge: 2000m A d T/dt=1.0˚C/min,20˚C Disharge Temperature: 20˚C
1.4 1.3 1.2 1.1
( )
Specifications mm Diameter Height Approximate Weight 17.0+0/-0.7 67.0+0/-1.5 Grams 53 inch 0.67+0/-0.03 2.64+0/-0.06 Ounces 1.87
1.0 0.9 0.8 0 1 2 3 4
760m A(0.2 It)
Discharge Time (hours)
Nominal Voltage Rated (Min.) Approx. Internal impedance at 1000Hz at charged state. Standard Charge Rapid-
- -
Ambient Temperature
1.2V 3800 m Ah 3700 m Ah 25mΩ 370m A (0.1It) x 16hrs. 2000m A d T/dt
Voltage...
