Datasheet Details
Part number:
KX-TS500FXH, KX-TS500FXB
Manufacturer:
Panasonic
File Size:
690.21 KB
Description:
Telephone service manual.
Note:
This datasheet PDF includes multiple part numbers: KX-TS500FXH, KX-TS500FXB.
Please refer to the document for exact specifications by model.
KX-TS500FXH, KX-TS500FXB, Telephone Service Manual
When a dial key is pressed, a DTMF signal is output from Pin 25 of IC1 as an analog synthetic wave.
The signal flow to the line is as follows.
Pin 25 of IC1 → Q3 → R9 → Q1 → Tel Line.
The DTMF signal is sent to the line via the fo

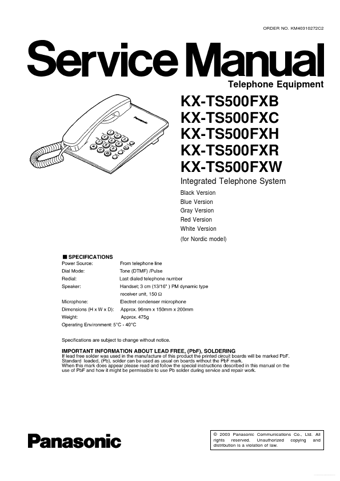

ORDER NO.
KM40310272C2 Telephone Equipment KX-TS500FXB KX-TS500FXC KX-TS500FXH KX-TS500FXR KX-TS500FXW Integrated Telephone System Black Version Blue Version Gray Version Red Version White Version (for Nordic model) © 2003 Panasonic Communications Co., Ltd.
All rights reserved.
Unauthorized copying and distribution is a violation of law.
Free Datasheet http://www.datasheet4u.net/ KX-TS500FXB / KX-TS500FXC / KX-TS500FXH / KX-TS500FXR / KX-TS500FXW CONTENTS Page 1 ABOUT LEAD FREE SOLDER (PbF
KX-TS500FXH Features
* 7.1. For Call Waiting Service Users 7.2. Temporary Tone Dialing (For Rotary or Pulse Service Users) 8 DISASSEMBLY INSTRUCTIONS 9 TROUBLE SHOOTING GUIDE 9.1. Service Hints 9.2. Pulse Dialing Problems 9.3. Problems With the Handset 9.4. Tone Dialing Problems 9.5. Problems With Ringer 9.6. How to Check
