MA4068, MA4020 - Silicon Planar Type

MA4068 Description

Zener Diodes MAZ4000 Series (MA4000 Series) Silicon planar type Unit : mm For stabilization of power supply I .

MA4068 Features

* High reliability, achieved by the DHD structure
* Allowing to insert to a 5 mm pitch hole
* Finely divided zener-voltage rank
* Sharp rising performance
* Wide voltage range: VZ = 2.0 V to 39 V φ 0.45 max. 1 13 min. Colored band indicates Vz classification

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MA4068, MA4020. Please refer to the document for exact specifications by model.

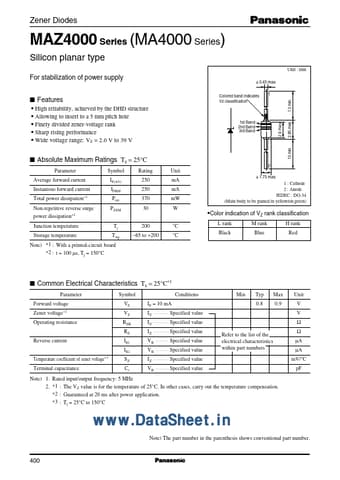

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4068, MA4020
Manufacturer
Panasonic
File Size
104.60 KB
Datasheet
MA4020_Panasonic.pdf
Description
Silicon Planar Type
Note
This datasheet PDF includes multiple part numbers: MA4068, MA4020.
Please refer to the document for exact specifications by model.
