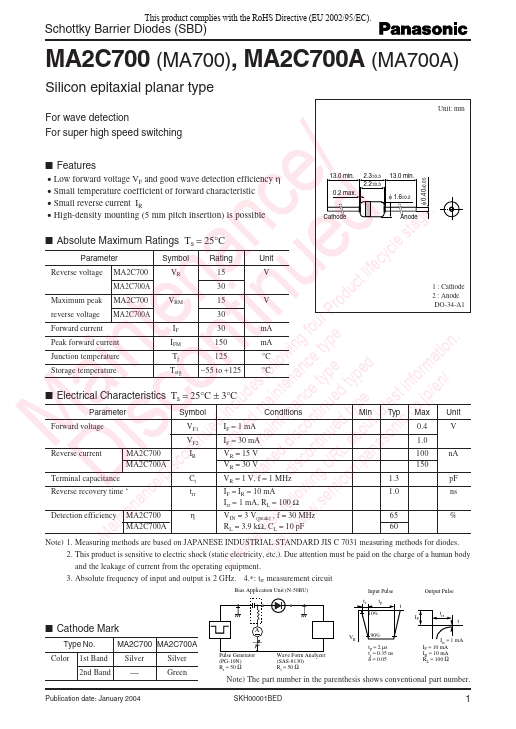

MA700A, MA700 Schottky Barrier Diodes

MA700A Description

This product complies with the RoHS Directive (EU 2002/95/EC).Schottky Barrier Diodes (SBD) MA2C700 (MA700), MA2C700A (MA700A) Silicon epitaxial pl.

MA700A Features

* /
* Low forward voltage VF and good wave detection efficiency η
* Small temperature coefficient of forward characteristic e
* Small reverse current IR .
* High-density mounting (5 mm pitch insertion) is possible 13.0 min. 0.2 max. 2.3±0.3 2.2±0.3 13.0 min. φ 1.6±0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MA700A, MA700. Please refer to the document for exact specifications by model.

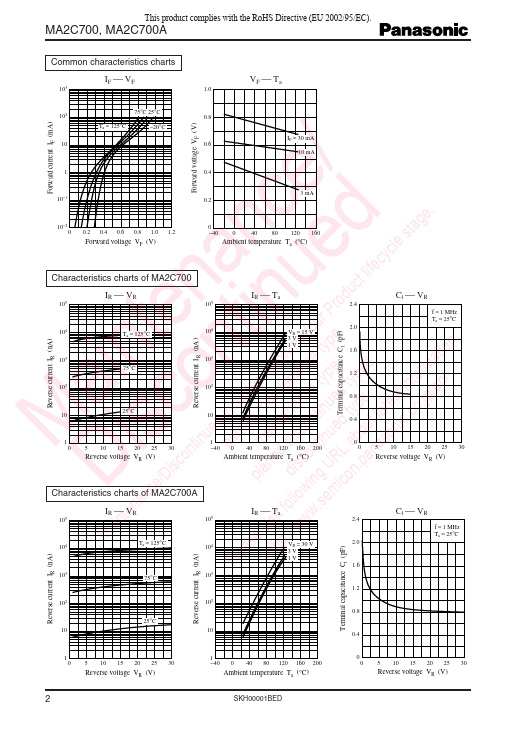

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA700A, MA700
Manufacturer
Panasonic
File Size
224.00 KB
Datasheet
MA700-Panasonic.pdf
Description
Schottky Barrier Diodes
Note
This datasheet PDF includes multiple part numbers: MA700A, MA700.
Please refer to the document for exact specifications by model.
