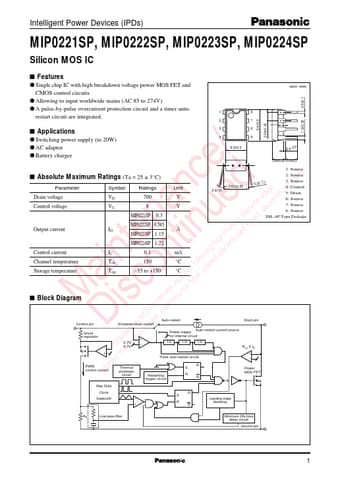

Intelligent Power Devices (IPDs)
MIP0221SP, MIP0222SP, MIP0223SP, MIP0224SP
Silicon MOS IC
s Features q Single chip IC with high breakdown voltage power MOS FET and
CMOS control circuits q Allowing to input worldwide mains (AC 85 to 274V) q A pulse-by-pulse overcurrent protection circuit and a timer auto-
restart circuit are integrated.
s Applications q Switching power supply (to 20W) q AC adaptor q Battery charger
s Absolute Maximum Ratings (Ta = 25 ± 3°C)
Parameter
Symbol Ratings
Drain voltage Control voltage
VD 700 VC 8
MIP0221SP 0.3
Output current
MIP0222SP 0.585 ID
MIP0223SP 1.15
MIP0224SP 1.
